Static Shielding Bags

Protect sensitive products from electrostatic discharge
Heat sealable
Other sizes and thickness available on request
Printed with ESD awareness & RoHS compliant logo, custom printingis available on request
RoHS and Reach compliant

Product Detail

Product Tags

Sinho’s Static Shielding Bags are static dissipative bags designed to provide superior protection for sensitive electronics devices, like PCBs, computer components, intergrated circuits and more.

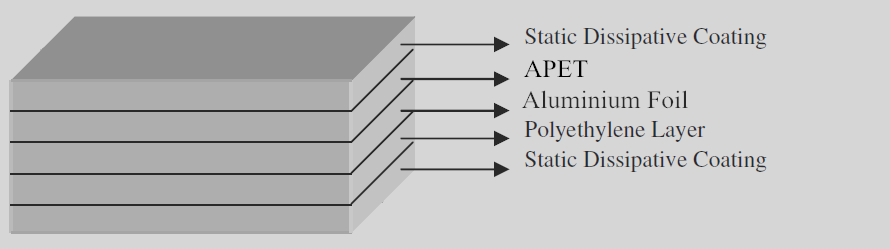

This open -top static shielding bags have a 5-layer construction with an anti-static coating providing a completed protection of ESD damages, and are semi-transparent for easy content identification. Sinho supply a huge range of Static Shielding Bags in multiple thicknesses and sizes to fit your needs. Custom printing is available on request, although minimum order quantities may apply.

Features

● Protect sensitive products from electrostatic discharge

● Heat sealable

● Printed with ESD awareness & RoHS compliant logo

● Other sizes and thickness available on request

● Custom printing is available on request, although minimum order quantities may apply

● RoHS and Reach compliant

● Surface resistance of 10⁸-10¹¹Ohms

● Suitable for packing electronic products which are sensitive to static, eg PCB’s, Electronic Components etc

Available Sizes

Part Number	Size (inch)	Size (mm)	Thickness
SHSSB0810	8x10	205×255	2.8 Mil
SHSSB0812	8x12	205×305	2.8 Mil
SHSSB1012	10x12	254×305	2.8 Mil
SHSSB1518	15x18	381×458	2.8 Mil
SHSSB2430	24x30	610×765	2.3 Mil

Physical Properties

Physical Properties	Typical Value	Test method
Thickness	3mil 75 micron	N/A
Transparency	50%	N/A
Tensile Strength	4600 PSI, 32MPa	ASTM D882
Puncture Resistance	12 lbs, 53N	MIL-STD-3010 Method 2065
Seal Strength	11 lbs, 48N	ASTM D882
Electrical Properties	Typical Value	Test method
ESD Shielding	<20 nJ	ANSI/ESD STM11.31
Surface Resistance Interior	1 x 10^8 to < 1 x 10^11 ohms	ANSI/ESD STM11.11
Surface Resistance Exterior	1 x 10^8 to < 1 x 10^11 ohms	ANSI/ESD STM11.11
Heat Sealing Conditions	Typical Value	-
Temperature	250°F - 375°F
Time	0.5 – 4.5 seconds
Pressure	30 – 70 PSI

Recommended Storage Conditions

Store in its original packaging in a climate-controlled environment where temperature ranges from 0~40℃, relative humidity <65%RHF. This product is protected from direct sunlight and moisture.
