Pressure Sensitive Cover Tape
SINHO Antistatic Pressure Sensitive Cover Tape SHPT27 series is a transparent, antistatic polyester film tape. The loaded conductive material helps to perform a permanent and steady protection to the electrostatic sensitive devices. It is designed to work effectively with Polystyrene black, Polystyrene clear, Polycarbonate (black or clear), Acrylonitrile Butadiene Styrene black carrier tapes. The SHPT27 complies with industry standards set forth in EIA-481 and is completely re-sealable.

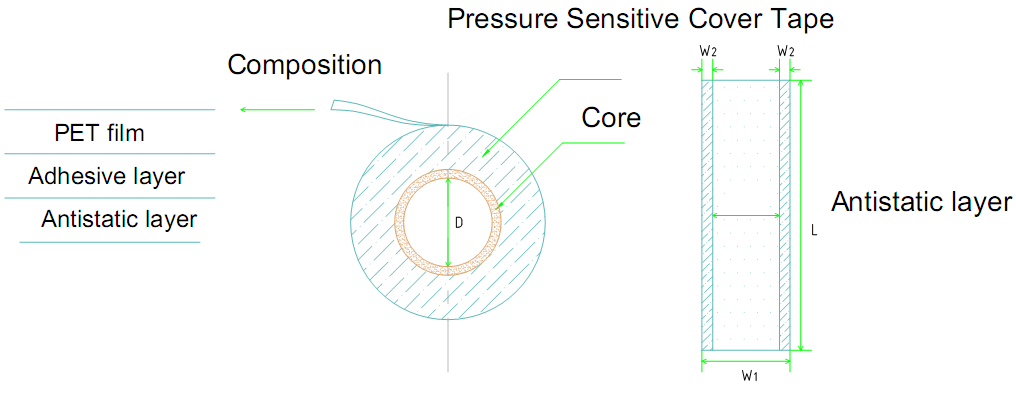

Available Widths
Cover Tape SHPT27 series is available in the standard sizes listed below, it is supplied in 200/300/500 meter rolls. Custom widths and lengths are available upon request.
|
Standard Sizes |
Width (mm) |
|
|
|
||||||
|
Carrier Tape |
8 |
12 |
16 |
24 |
32 |
44 |
56 |
72 |
88 |
104 |
|
Cover Tape |
5.4 |
9.3 |
13.3 |
21.3 |
25.5 |
37.5 |
49.5 |
65.5 |
81.5 |
97.5 |
|
Adhesive edge |
0.7 |
1.0 |
1.2 |
1.5 |
1.5 |
1.5 |
1.5 |
2.0 |
2.0 |
2.0 |
|
Roll Length (meters) |
200/300 |
200/300 |
200/300 |
200/300 |
200/300 |
200/300 |
200/300 |
200/300 |
200/300 |
200/300 |
|
Part Number |
Width +/-0.10mm |
Qty/case |
|
SHPT27-5.4 |
5.4 |
160 |
|
SHPT27-9.3 |
9.3 |
80 |
|
SHPT27-13.3 |
13.3 |
60 |
|
SHPT27-21.3 |
21.3 |
48 |
|
SHPT27-25.5 |
25.5 |
40 |
|
SHPT27-37.5 |
37.5 |
20 |
|
SHPT27-49.5 |
49.5 |
20 |
|
SHPT27-65.5 |
65.5 |
16 |
|
SHPT27-81.5 |
81.5 |
12 |
|
SHPT27-97.5 |
97.5 |
8 |
|
SHPT27-113.0 |
113.0 |
8 |
Material Properties
|
Electrical Properties |
Typical Value |
Test Method |
|
Static Decay (+5kv~-5kv) |
<0.1sec |
FTMS 101C 4046.1 |
|
Surface Resistivity (Component Side) (both surface 12%RH,23℃) |
≤1010Ω |
ASTM-D257 |
|
Physical Properties |
Typical Value |
Test Method |
|
Thickness:Total |
0.060mm±0.005mm |
ASTM-D3652 |
|
Subatrate |
25u±5% |
ASTM-D3652 |
|
Adhesive |
﹥200g/15mm |
/ |
|
Tensile Strength (MD) |
>5.5kg/15mm |
JIS Z-1707 |
|
Elongation(MD) |
>150% |
JIS Z-1707 |
|
Haze(%) |
﹤13 |
JIS K6714 |
|
Clarity(%) |
87 |
ASTMD1003 |
|
Adhesion to carrier tape/Peel |
50 grams±30 grams |
EIA-481 |
|
Note: The technical information and data provided should be regarded as representative or typical and should not be used for specification purposes. |
||
|
Chemical Properties (ESD contains no Amines, N-Octanic Acid) |
||
Recommended Sealing Conditions
Temperature: 23°-25° (73°F-77°F)
Pressure: 40 PSI
Speed: 2 meters/min
Remark:
1. The Values Depend on the carrier tape variety; 2. The
customer should determine their own product's application
based on each of their own internal criteria and machine type
Storage Conditions
1、Environment Temperature and relative humidity:（25±2)℃, (60%±10%) RH
2、Optimum using environment: 25℃, 70%RH
3、Shelf Life: 1 YEAR
4、Be protected from direct sunlight
Cover Tape Compatibility
| Type |
Carrier Tape |
|||||
| Material |
PS Black |
PS Clear |
PC Black |
PC Clear |
ABS Black |
APET Clear |
| Pressure Sensitive(SHPT27) |
√ |
√ |
√ |
√ |
√ |
X |
