Polystyrene Clear Flat Punched Carrier Tape

Constructed from antistatic super clear polystyrene material for ESD protection
Available in a variety of thickness: 0.30mm, 0.40mm, 0.50mm, 0.60mm
Sizes range from 4mm to 88mm, with lengths of 400m, 500m, and 600m
Compatible with all pick and place feeders

Product Detail

Product Tags

Sinho's Flat Punched Carrier Tape is versatile, coming in different thicknesses and sizes, including clear and black polystyrene, black polycarbonate, clear polyethylene terephthalate, and white paper materials. Sinho's Polystyrene (PS) Clear Flat Punched Carrier Tape is specifically designed for Tape and Reel leaders and trailers for partial component reels. It is compatible with most SMT pick and place feeders and can be spliced onto existing SMD reels to extend their length, reducing waste.

Polystyrene (PS) Clear Flat Punched Carrier Tape is made from antistatic super clear material to shield components from electrostatic discharge (ESD). It's offered in various thicknesses ranging from 0.30mm to 0.60mm and is available in a wide selection of tape widths, spanning from 4mm to 88mm.

Details

Constructed from antistatic super clear polystyrene material for ESD protection		Available in a variety of thickness: 0.30mm, 0.40mm, 0.50mm, 0.60mm		Available sizes form 4mm even up to 88mm
Compatible with all pick and place feeders		Available lengths: 400m, 500m, 600m		Custom lengths and sizes can be provided

Available Widths

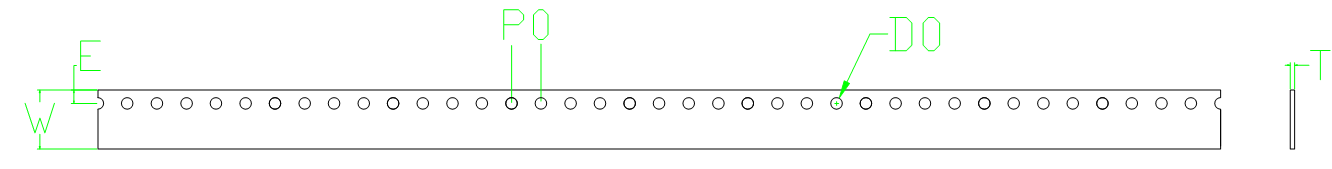

Wide 4mm just with sprocket holes

W	SO	E	PO	DO	T
4.00 ±0.05	/	0.90 ±0.05	2.00 ±0.04	0.80 ±0.04	0.30 ±0.05

Wide 8-24mm just with sprocket holes

W	SO	E	PO	DO	T
8.00 ±0.30	/	1.75 ±0.10	4.00 ±0.10	1.50 +0.10/-0.00	0.30 ±0.05
12.00 ±0.30	/	1.75 ±0.10	4.00 ±0.10	1.50 +0.10/-0.00	0.30 ±0.05
16.00 ±0.30	/	1.75 ±0.10	4.00 ±0.10	1.50 +0.10/-0.00	0.30 ±0.05
24.00 ±0.30	/	1.75 ±0.10	4.00 ±0.10	1.50 +0.10/-0.00	0.30 ±0.05

Wide 32-88mm with sprocket and elliptical holes

W	SO	E	PO	DO	T
32.00 ±0.30	28.40 ±0.10	1.75 ±0.10	4.00 ±0.10	1.50 +0.10/-0.00	0.30 ±0.05
44.00 ±0.30	40.40 ±0.10	1.75 ±0.10	4.00 ±0.10	1.50 +0.10/-0.00	0.30 ±0.05
56.00 ±0.30	52.40 ±0.10	1.75 ±0.10	4.00 ±0.10	1.50 +0.10/-0.00	0.30 ±0.05

Typical Properties

Brands		SINHO
Color		Supper Clear
Material		Polystyrene (PS) Antistatic
Overall Width		4mm, 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm
Thickness		0.3mm, 0.4mm, 0.5mm, 0.6mm or required thickness is also available
Length		400M, 500M, 600M, or tailored lengths upon request

Material Properties

PS Supper Clear Antistatic

Physical Properties	Test method	Unit	Value
Specific Gravity	ASTM D-792	g/cm3	1.08
Mechanical Properties	Test method	Unit	Value
Tensile Strength @Yield	ISO527	Kg/cm²	37.2
Tensile Strength @Break	ISO527	Kg/cm²	35.4
Tensile Elongation @Break	ISO527	%	78
Electrical Properties	Test method	Unit	Value
Surface Resistance	ASTM D-257	Ohm/sq	10⁹^~¹¹
Thermal Properties	Test method	Unit	Value
Heat distortion temperature	ASTM D-648	℃	62
Molding shrinkage	ASTM D-955	%	0.004
Optical Properties	Test method	Unit	Value
Light Transmission	ISO-13468-1	%	91.3
Haze	ISO 14782	%	17.8

Shelf Life and Storage

Product shelf life: 1 year when stored properly. Keep in original packaging at 0℃ to 40℃, with relative humidity <65%RHF. Protect from moisture and direct sunlight.

Camber

Meets the latest EIA-481 standard, ensuring camber does not exceed 1mm in 250 millimeters length.

Resources

Physical Properties for Materials Physical Properties for PS Supper Clear Antistatic Sheet material (PDF, 80KB)	Material Safety Data Sheet MSDS for Polystyrene Plastic Sheets (PDF, 110KB)
Drawing Sinho 4mm Punched Tape Drawing (PDF, 46KB) Sinho 8-24mm Punched Tape Drawing (PDF, 55KB) Sinho 32-56mm Punched Tape Drawing (PDF, 56KB)	Safety Tested Reports TSCA TEST REPORT (PDF, 470KB) RoHS TEST REPORT (PDF, 443KB) HALOGEN TEST REPORT (PDF, 392KB) ESD TEST REPORT (PDF, 1616KB)
