Polyethylene Terephthalate Flat Punched Carrier Tape
Sinho offers a range of Flat Punched Carrier Tapes in different materials, including clear and black polystyrene, black polycarbonate, clear polyethylene terephthalate (PET), and white paper. Sinho's Polyethylene terephthalate (PET) Flat Punched Carrier Tape is designed for Tape and Reel leaders and trailers for partial component reels, It is compatible with most SMT pick and place feeders. This punched tape can also be spliced onto existing SMD reels to extend their length and reduce waste.
Polyethylene terephthalate (PET) Flat Punched Carrier Tape is a clear insulative material. It's offered in thicknesses of 0.3mm, 0.4mm, 0.5mm, and 0.6mm, with a wide selection of tape widths ranging from 4mm to 88mm. Customization of both thickness and length is available upon request.
Details
| Made of polyethylene terephthalate clear material |
Offered in a wide thickness range, from 0.30mm to 0.60mm |
The available size range spans from 4mm to 88mm |
||
| Compatible with different kind of SMT pick and place feeders | This product comes in lengths of 400m, 500m, and 600m | Custom sizes and lengths can be accommodated |

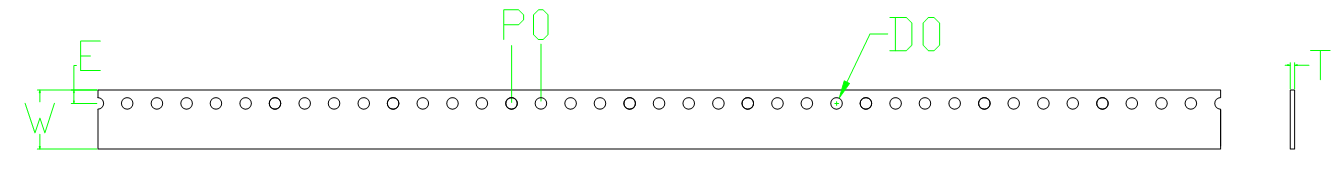

Available Widths
Wide 8-24mm just with sprocket holes
|
SO |
E |
PO |
DO |
T |
|
|
/ |
1.75 ±0.10 |
4.00 ±0.10 |
1.50 +0.10/-0.00 |
0.30 ±0.05 |
|
|
12.00 ±0.30 |
/ |
1.75 ±0.10 |
4.00 ±0.10 |
1.50 +0.10/-0.00 |
0.30 ±0.05 |
|
16.00 ±0.30 |
/ |
1.75 ±0.10 |
4.00 ±0.10 |
1.50 +0.10/-0.00 |
0.30 ±0.05 |
|
24.00 ±0.30 |
/ |
1.75 ±0.10 |
4.00 ±0.10 |
1.50 +0.10/-0.00 |
0.30 ±0.05 |
Typical Properties
| Brands |
SINHO |
|
| Color |
Clear |
|
| Material |
Polyethylene Terephthalate (PET) Insulative |
|
| Width options include |
4mm, 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, and 88mm |
|
| Thickness |
include 0.3mm, 0.4mm, 0.5mm, 0.6mm, or custom thickness as needed |
|
| Length |
400M, 500M, 600M, or customizable lengths upon request |
Material Properties
|
Physical Properties |
Test method |
Unit |
Value |
|
Specific Gravity |
ASTM D-792 |
g/cm3 |
1.36 |
|
Mechanical Properties |
Test method |
Unit |
Value |
|
Tensile Strength @Yield |
ISO527-2 |
MPA |
90 |
|
Tensile Elongation @Break |
ISO527-2 |
% |
15 |
|
Electrical Properties |
Test method |
Unit |
Value |
|
Surface Resistance |
ASTM D-257 |
Ohm/sq |
/ |
|
Test method |
Unit |
Value |
|
|
Heat distortion temperature |
ISO75-2/B |
℃ |
75 |
|
Optical Properties |
Test method |
Unit |
Value |
|
Light Transmission |
ISO-13468-1 |
% |
91.1 |
Shelf Life and Storage
This product maintains its quality for one year under recommended storage conditions: Keep it in its original packaging, store between 0℃ to 40℃, with relative humidity below 65%RHF, and protect from direct sunlight and moisture
Camber
Meets current EIA-481 standard for camber that is not greater than 1mm in 250 millimeters length.
