Products
PF-35 Peel Force Tester
Sinho’s PF-35 Peel Force Tester is designed to test, record sealing strength of cover tape to carrier tape, to make sure the sealing tension of the carrier tape and cover tape is within a certain range according to EIA-481. This series can accommodate tape widths from 8mm to 72mm and operates at peel speeds of 120mm to 300 mm per minute.
Flexible, easy-to-use, advanced electronic characteristics make the PF-35 a perfect choice for your Peel Force choice.
Features
● Handle all tape from widths 8mm to 72mm, optional up to 200mm if required.
● USB communications interface
● Optional Netbook or Using your own computer, Sinho provides the software package required to operate the tester.
● Automated home and calibration positioning
● Peel speed of 120 mm to 300 mm per minute

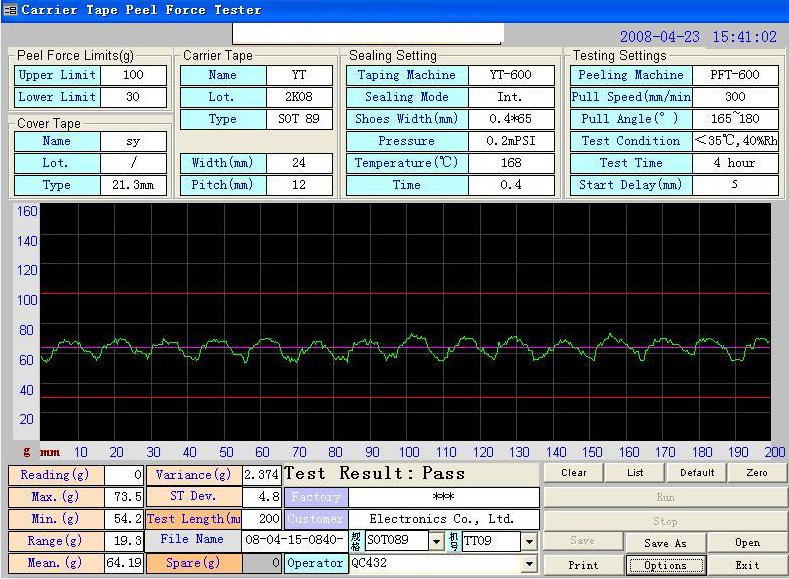

● Connect with computer, recording test result and show in curved line, automate analysis min, max, average value,
peel force range and CPK value
● Easy design allows operator calibration in minute
● Measures in grams
● English version interface
● Measuring range: 0-160g
● Peel Angle: 165-180°
● Peel length: 200mm
● Dimensions: 93cmX12cmX22cm
● Power required: 110/220V, 50/60HZ
Options
● Notebook with security package or using your own computer
Tape and Reel Video
Resources
| Date Sheet |
