Products

Moisture Barrier Bags

  • Protect electronics from moisture and static damage

  • Heat sealable
  • Other sizes and thickness available on request
  • Multilayer barrier bags offering superior protection against ESD,moisture and electromagnetic interference (EMI)
  • RoHS and Reach compliant

Product Detail

Product Tags

Sinho’s moisture barrier bags are perfect for packaging and safely transporting electronic components that are sensitive to moisture and static. Sinho supply a huge range of moisture barrier bags in multiple thicknesses and sizes to fit your needs.

Moisture barrier bags are produced specifically to protect sensitive equipment and products from electrostatic discharge (ESD) and moisture damage during transit or storage. These bags can be vacuum packed.

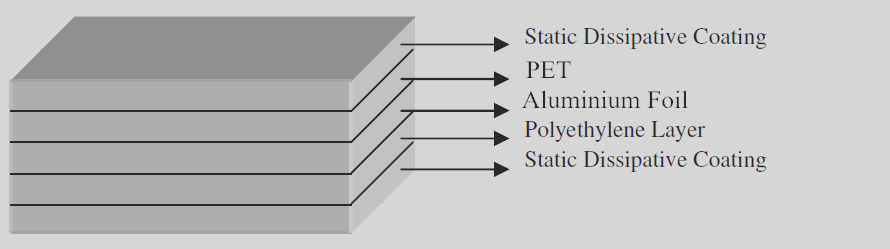

Moisture-Barrier-Bags-Construction

This open -top moisture barrier bags hold a 5-layer construction. This cross-section from outermost to innermost layers is static dissipative coating, PET, aluminium foil, polyethylene layer, and static dissipative coating. Custom printing is available on request, although minimum order quantities may apply.

Features

● Protect electronics from moisture and static damage

● Heat sealable

● Dedicated to package electronic components under vacuum or inert gas immediately after production

● Multilayer barrier bags offering superior protection against ESD, moisture and electromagnetic interference (EMI)

● Other sizes and thickness available on request

● Custom printing is available on request, although minimum order quantities may apply

● RoHS and Reach compliant

● Surface resistance of 10⁸-10¹¹Ohms

● These bags are ideal for transporting and storing sensitive devices such as circuit boards and electronic components

● Flexible structure & easy to vacuum seal

Available Sizes

Part Number

Size (inch)

Size (mm)

Thickness

SHMBB1012

10x12

254×305

7 Mil

SHMBB1020

10x20

254×508

7 Mil

SHMBB10.518

10.5x18

270×458

7 Mil

SHMBB1618

16x18

407×458

7 Mil

SHMBB2020

20x20

508×508

3.6 Mil

Physical Properties


Physical Properties

Typical Value

Test method

Thickness

Various

N/A

Moisture Vapor Transmission Rate (MVTR)

Depend on thickness

ASTM F 1249

Tensile Strength

7800 PSI, 54MPa

ASTM D882

Puncture Resistance

20 lbs, 89N

MIL-STD-3010 Method 2065

Seal Strength

15 lbs, 66N

ASTM D882

Electrical Properties

Typical Value

Test method

ESD Shielding

<10 nJ

ANSI/ESD STM11.31

Surface Resistance Interior

1 x 10^8 to < 1 x 10^11 ohms

ANSI/ESD STM11.11

Surface Resistance Exterior

1 x 10^8 to < 1 x 10^11 ohms

ANSI/ESD STM11.11

Heat Sealing Conditions

Typical Value

-

Temperature

250°F - 400°F



Time

0.6 – 4.5 seconds



Pressure

30 – 70 PSI



Recommended Storage Conditions

Store in its original packaging in a climate-controlled environment where temperature ranges from 0~40℃, relative humidity <65%RHF. This product is protected from direct sunlight and moisture.

Shelf Life

Product should be used within 1 year from the date of manufacture.
