Mini 4 inch Component Plastic Reel
Sinho’s ANTISTATIC PLASTIC REELS provide excellent protection for components that are packaged in carrier tape for presentation to pick and place machines. There are mainly three types reels, one piece style for mini 4” and 7” reels, assembly type for 13” and 15” reels, the third type is 22” packaging plastic reel. Sinho plastic reels are injection molded using High Impact Polystyrene (HIPS) exception 22 inch reels which could be made of Polystyrene (PS), Polycarbonate (PC) or Acrylonitrile Butadiene Styrene (ABS). All reels are externally coated for complete ESD protection. Available in EIA standard carrier tape widths from 8 to 72mm.
Sinho’s Mini 4” plastic reels are one piece reels, which is injection molded using anti-static coated high impact polystyrene. The sturdy one piece construction is convenient with no assembly required. This reel provides excellent protection when shipping tiny components packaged in carrier tape, such as bare die. SHPR series is available in the standard sizes of 4"×wide 8mm, 4"×wide 12mm, 4"×wide 16mm.
Details
| One-piece static dissipative mini component reels | Made from high impact polystyrene for added strength and durability | Engineered for shipping tiny components packaged in carrier tape | ||
| Available in the standard sizes of 4"×wide 8mm, 4"×wide 12mm, 4"×wide 16mm |
|
Black, white and blue are main colors |
|
Customize color is available |
Typical Properties
| Brands |
SINHO (SHPR series) |
|
| Reel Type |
Anti-static one piece reel |
|
| Color |
Black, White, Blue, or customize color is also available |
|
| Material |
HIPS (high impact polystyrene), |
|
| Reel Size |
Mini 4 inch |
|
| Hub Diameter |
40±0.20mm |
|
| Available Carrier Tape Width |
8mm, 12mm, 16mm |
Available Sizes
|
Reel Sizs |
Hub Diameter / Type |
Sinho code |
Color |
Package |
|
4" × 8mm |
40mm / Round |
SHPR0408 |
Black |
318 pcs/reel |
|
4" × 12mm |
40mm / Round |
SHPR0412 |
318 pcs/reel |
|
|
4" × 16mm |
40mm / Round |
SHPR0416 |
318 pcs/reel |

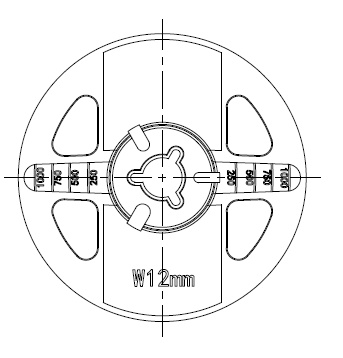

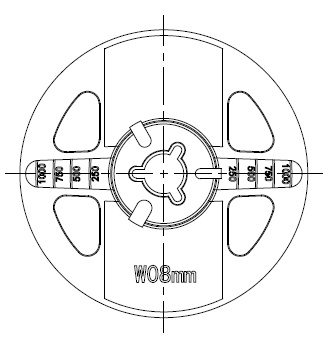

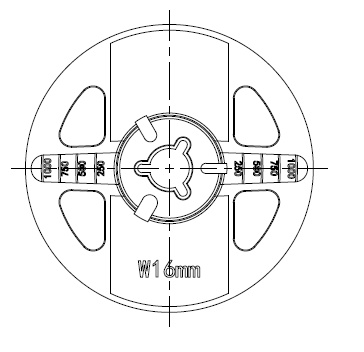

Dimensions for 4 Inch Moulded Reels
|
Tape Width |
A Diameter |
B Hub |
C |
D |
|
8 |
100 |
40 |
13.8 |
8.8 |
|
|
+/- 0.05 |
+/- 0.2 |
+/- 0.2 |
+/- 0.2 |
|
12 |
100 |
40 |
13.8 |
12.8 |
|
|
+/- 0.05 |
+/- 0.2 |
+/- 0.2 |
+/- 0.2 |
|
16 |
100 |
40 |
13.8 |
16.8 |
|
|
+/- 0.05 |
+/- 0.2 |
+/- 0.2 |
+/- 0.2 |
|
All other dimensions and tolerances are fully compliant with EIA-484-F |
||||
Material Properties
|
Properties |
Typical Value |
Test Method |
|
Type: |
Mini one piece |
|
|
Material: |
High Impact Polystyrene |
|
|
Appearance: |
Black |
|
|
Surface Resistivity |
≤1011Ω |
ASTM-D257,Ω |
|
Storage Conditions: |
||
|
Environment Temperature |
20℃-30℃ |
|
|
Relative Humidity: |
50%±10% |
|
|
Shelf Life: |
1 year |
|
Resources
| Date Sheet for Materials | Material Safety Data Sheet |
| Safety Tested Reports | Drawing |
