Heat Tape for Radial Leaded Components SHPT63A

Tailored for Radial Leaded Components
Product Code: SHPT63A Heat Tape
Applications: Various Electronic Components, including capacitors, resistors, thermistors, LEDs, and transistors (TO92 and TO220 packages)
All components adhere to EIA 468 standards for taping

Product Detail

Product Tags

Sinho's SHPT63A Heat Tape is designed for Radial Leaded Components, including capacitors, resistors, thermistors, LEDs, TO92 transistors, and TO220 transistors. All components are compliant with current EIA 468 standards.

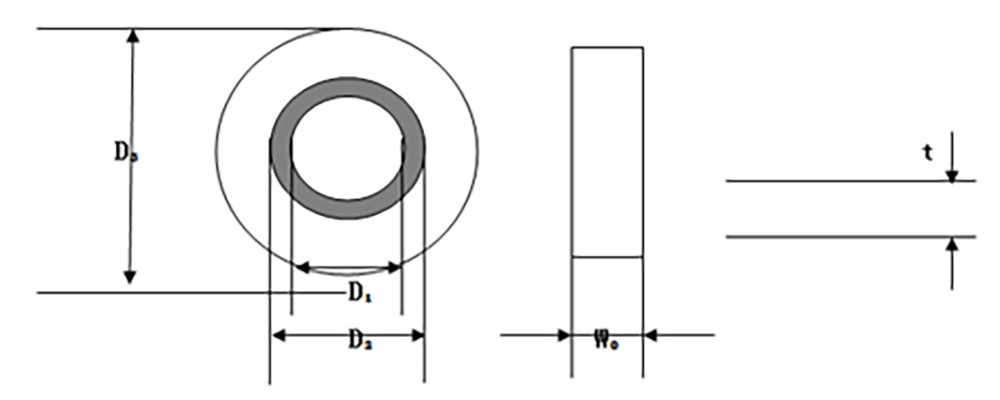

heat-tape-for-radial-leaded-components-construciton

Available Sizes

Width (Wo)	6mm±0.2mm
Length (L)	200m±1m
Thickness (T)	0.16mm±0.02mm
Inter diameter (D1)	77.5mm±0~0.5mm
Outer diameter (D2)	84mm±0~0.5mm

Physical Properties

Items	Typical Value
Tensile Strength (Kn/M)	≥3
Elongation (%)	≥10
Applied Temperature (reach seal side) (℃)	80°-120°
Pulling-out force (kg/10mm)	≥2

Recommended Storage Conditions

Store the product in its original packaging in a controlled environment with temperatures between 21-25°C and a relative humidity of 65%±5%. Ensure that the product is protected from direct sunlight and moisture.
