Heat Seal Activated Cover Tape
SINHO Antistatic Heat activated Clear SHHT32 series is a transparent, antistatic polyester film tape. It offers stable surface resistivity, very high transparency and consistent peel back force. It designed to work effectively with Polystyrene black, Polystyrene clear, Polycarbonate (black or clear), Acrylonitrile Butadiene Styrene black and Amorphous Polyethylene Terephthalate carrier tapes. The SHHT32 complies with industry standards set forth in EIA-481 Standard.
Available Widths
Cover Tape SHHT32 series is available in the standard sizes listed below, it is supplied in 300/500 meter rolls.
|
Part Number |
Width +/-0.10mm |
Qty/case |
|
SHHT32-5.4 |
5.4 |
140 |
|
SHHT32-9.3 |
9.3 |
80 |
|
SHHT32-13.3 |
13.3 |
60 |
|
SHHT32-21.3 |
21.3 |
40 |
|
SHHT32-25.5 |
25.5 |
36 |
|
SHHT32-37.5 |
37.5 |
20 |
|
SHHT32-49.5 |
49.5 |
16 |
|
SHHT32-65.5 |
65.5 |
12 |
|
SHHT32-81.5 |
81.5 |
8 |
|
SHHT32-97.5 |
97.5 |
8 |
|
SHHT32-113.0 |
113.0 |
8 |
Material Properties
|
Electrical Properties |
Typical Value |
Test Method |
|
Surface Resistivity (Component Side) |
≤1010Ω |
ASTM-D257,Ω |
|
Physical Properties |
Typical Value |
Test Method |
|
Appearance |
Transparent |
/ |
|
Thickness: |
0.060mm±0.005mm |
ASTM-D3652 |
|
Tensile Strength (kg/10mm) |
≥3 |
ASTM D-3759,N/mm |
|
Elongation(%) |
≥20 |
ASTM D-3759,% |
|
Haze(%) |
﹤13 |
JIS K6714 |
|
Clarity(%) |
85 |
ASTMD1003 |
|
Adhesion to carrier tape/Peel |
50 grams±30 grams |
EIA-481 |
|
Note: The technical information and data presented here should be considered representative or typical only,and should not be used for specification purposes. |
||
|
Chemical Properties (ESD contains no Amines, N-Octanic Acid) |
||
Recommended Sealing Conditions
Temperature: 140°-180°; Pressure: 30-40 PSI
Time: 0.25-0.40 Sec.; Seal Rail Width: 0.015"-0.020"
Remark:
1. The Values Depend on the carrier tape variety; 2. The
customer should determine their own product's application
based on each of their own internal criteria and machine type
Storage Conditions
1、Environment Temperature and relative humidity: 20℃-30℃, (50%±10%) RH
2、Shelf Life: 1 YEAR
3、Be protected from direct sunlight
Cover Tape Compatibility
| Type |
Carrier Tape |
|||||
| Material |
PS Black |
PS Clear |
PC Black |
PC Clear |
ABS Black |
APET Clear |
| Heat Activated(SHHT32) |
√ |
√ |
√ |
√ |
√ |
√ |
Resources
| Data Sheet for Materials | Material Safety Data Sheet |

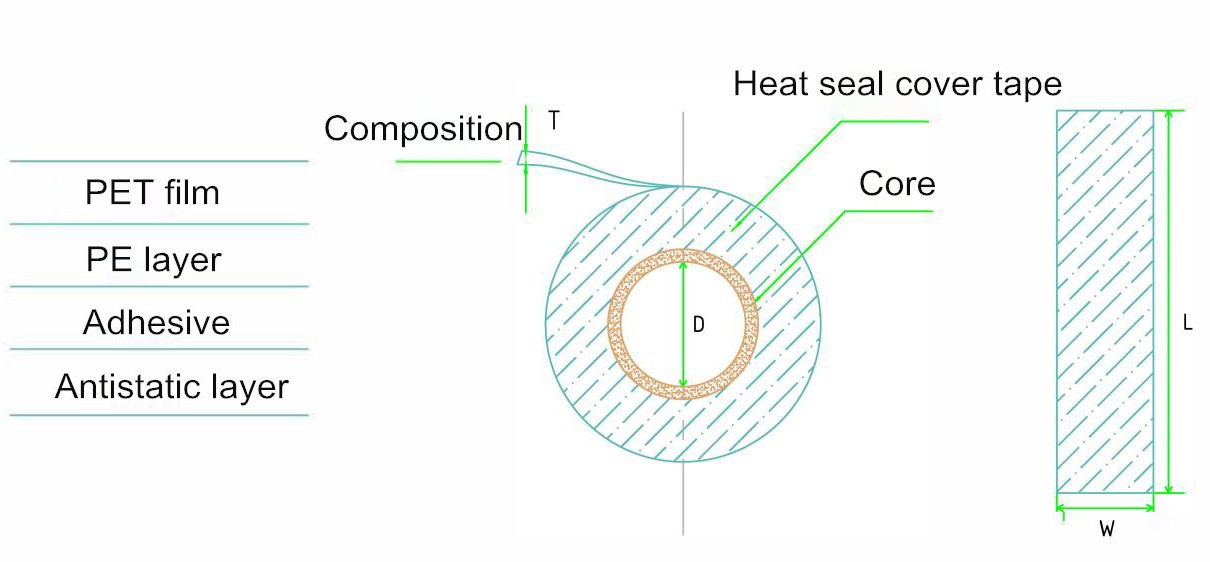

| Drawing | Safety Tested Reports |
