Double-sided Pressure Sensitive Cover Tape
SINHO Antistatic Pressure Sensitive Cover Tape SHPT27D series is a transparent, pressure sensitive cover tape, has static dissipative on both the inner and outer surfaces to provide complete ESD protection. This series is optimized for Polystyrene black, Polystyrene clear, Polycarbonate (black or clear), Acrylonitrile Butadiene Styrene black carrier tapes. The SHPT27D complies with EIA-481 Standards

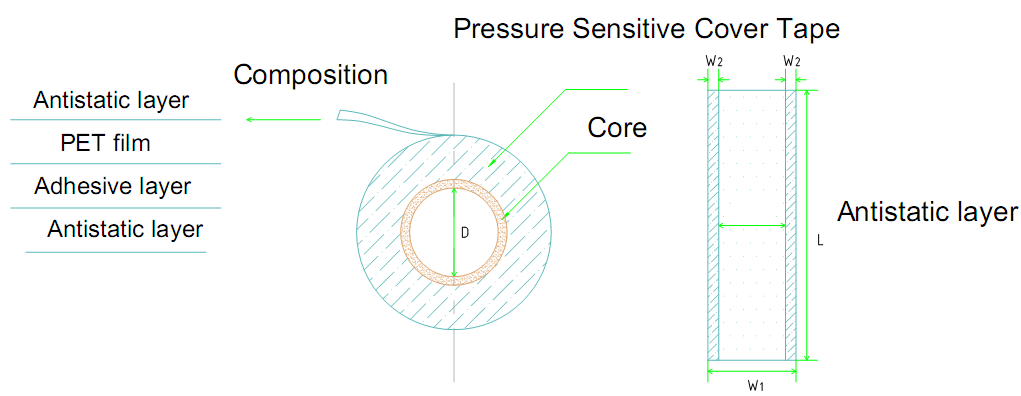

Available Widths
Cover Tape SHPT27D series comes in standard sizes and is supplied in rolls of 200/300/500 meters. It's compatible with carrier tape widths ranging from 8mm to 104mm, and custom widths and lengths can be provided upon request.
|
Standard Sizes |
Width (mm) |
|
|
|
||||||
|
Carrier Tape |
8 |
12 |
16 |
24 |
32 |
44 |
56 |
72 |
88 |
104 |
|
Cover Tape |
5.4 |
9.3 |
13.3 |
21.3 |
25.5 |
37.5 |
49.5 |
65.5 |
81.5 |
97.5 |
|
Adhesive edge |
0.7 |
1.0 |
1.2 |
1.5 |
1.5 |
1.5 |
1.5 |
2.0 |
2.0 |
2.0 |
|
Roll Length (meters) |
200/300/500
|
200/300/500 |
200/300/500 |
200/300/500 |
200/300/500 |
200/300/500 |
200/300/500 |
200/300/500 |
200/300/500 |
200/300/500 |
|
Part Number |
Width +/-0.10mm |
Qty/case |
|
SHPT27D-5.4 |
5.4 |
160 |
|
SHPT27D-9.3 |
9.3 |
80 |
|
SHPT27D-13.3 |
13.3 |
60 |
|
SHPT27D-21.3 |
21.3 |
48 |
|
SHPT27D-25.5 |
25.5 |
40 |
|
SHPT27D-37.5 |
37.5 |
20 |
|
SHPT27D-49.5 |
49.5 |
20 |
|
SHPT27D-65.5 |
65.5 |
16 |
|
SHPT27D-81.5 |
81.5 |
12 |
|
SHPT27D-97.5 |
97.5 |
8 |
|
SHPTD27-113.0 |
113.0 |
8 |
Material Properties
|
Electrical Properties |
Typical Value |
Test Method |
|
Static Decay (+5kv~-5kv) |
<0.1sec |
FTMS 101C 4046.1 |
|
Surface Resistivity (Double-sided) (both surface 12%RH,23℃) |
≤1010Ω |
ASTM-D257 |
|
Physical Properties |
Typical Value |
Test Method |
|
Thickness:Total |
0.060mm±0.005mm |
ASTM-D3652 |
|
Subatrate |
25u±5% |
ASTM-D3652 |
|
Adhesive |
﹥200g/15mm |
/ |
|
Tensile Strength (MD) |
>5.5kg/15mm |
JIS Z-1707 |
|
Elongation(MD) |
>150% |
JIS Z-1707 |
|
Haze(%) |
﹤13 |
JIS K6714 |
|
Clarity(%) |
87 |
ASTMD1003 |
|
Adhesion to carrier tape/Peel |
50 grams±30 grams |
EIA-481 |
|
Note: The provided technical information and data should be viewed as representative or typical and should not be used for specification purposes. |
||
|
Chemical Properties (ESD contains no Amines, N-Octanic Acid) |
||
Recommended Sealing Conditions
Temperature range: 23°C to 25°C (73°F to 77°F)
Pressure: 40 pounds per square inch (PSI)
Speed: 2 meters per min
Comment:
1. Values differ with the carrier tape type; 2. Customers should possess knowledge of their product's application based on their internal criteria and machine type.
Storage Conditions and Shelf Life
1. Storage Conditions: Maintain a temperature of 23-27°C and a relative humidity of 50%-70%.
2. Optimal Usage: Ideal conditions are 25°C with 70% RH
3. Shelf Life: The product is good for one year
4. Sunlight Protection: Shield from direct sunlight
Cover Tape Compatibility
| Type |
Carrier Tape |
|||||
| Material |
PS Black |
PS Clear |
PC Black |
PC Clear |
ABS Black |
APET Clear |
| Double-sided Pressure Sensitive (SHPT27D) |
√ |
√ |
√ |
√ |
√ |
X |
