Double-sided Heat Activated Cover Tape
The SINHO SHHT32DD series is a transparent, antistatic polyester film tape with double-sided static dissipative properties. It is designed to be compatible with carrier tapes like Polystyrene (both black and clear), Polycarbonate (both black and clear), Acrylonitrile Butadiene Styrene (black), and Amorphous Polyethylene Terephthalate. Additionally, it adheres to industry standards specified in the EIA-481 Standard.
Available Widths
Cover Tape SHHT32D D series is available in the standard sizes listed below, it is supplied in 300/500 meter rolls. Custom widths and lengths are available upon request.
|
Part Number |
Width +/-0.10mm |
Qty/case |
|
SHHT32D-5.4 |
5.4 |
140 |
|
SHHT32D-9.3 |
9.3 |
80 |
|
SHHT32D-13.3 |
13.3 |
60 |
|
SHHT32D-21.3 |
21.3 |
40 |
|
SHHT32D-25.5 |
25.5 |
36 |
|
SHHT32D-37.5 |
37.5 |
20 |
|
SHHT32D-49.5 |
49.5 |
16 |
|
SHHT32D-65.5 |
65.5 |
12 |
|
SHHT32D-81.5 |
81.5 |
8 |
|
SHHT32D-97.5 |
97.5 |
8 |
|
SHHT32D-113.0 |
113.0 |
8 |
Material Properties
|
Electrical Properties |
Typical Value |
Test Method |
|
Surface Resistivity (Double-sided antistatic) |
≤1010Ω |
ASTM-D257,Ω |
|
Physical Properties |
Typical Value |
Test Method |
|
Appearance |
Transparent |
/ |
|
Thickness: |
0.060mm±0.005mm |
ASTM-D3652 |
|
Tensile Strength (kg/10mm) |
≥3 |
ASTM D-3759,N/mm |
|
Elongation(%) |
≥20 |
ASTM D-3759,% |
|
Haze(%) |
﹤13 |
JIS K6714 |
|
Clarity(%) |
85 |
ASTMD1003 |
|
Adhesion to carrier tape/Peel |
50 grams±30 grams |
EIA-481 |
|
Note: The technical information and data shown here should be considered as representative or typical one only, and should not be used for specification purposes. |
||
|
Chemical Properties (ESD is amine-free and does not contain N-Octanic Acid) |
||
Recommended Sealing Conditions
Sealing Temperature: 140°-180°;
Sealing Pressure: 30-40 PSI;
Sealing Time: 0.25-0.40 Sec.;
Seal Rail Width: 0.015"-0.020"
Comment:
1. Values vary with carrier tape type; 2. Customers should determine product suitability based on their internal criteria and machine type.
Storage Conditions
1、Environment Temperature: 20℃-30℃ Relative Humidity: (50%±10%) RH
2、Shelf Life: 1 YEAR
3、Keep it out of direct sunlight
Cover Tape Compatibility
| Type |
Carrier Tape |
|||||
| Material |
PS Black |
PS Clear |
PC Black |
PC Clear |
ABS Black |
APET Clear |
| Double-sided Heat Activated (SHHT32D) |
√ |
√ |
√ |
√ |
√ |
√ |
Resources
| Data Sheet for Materials | Material Safety Data Sheet |

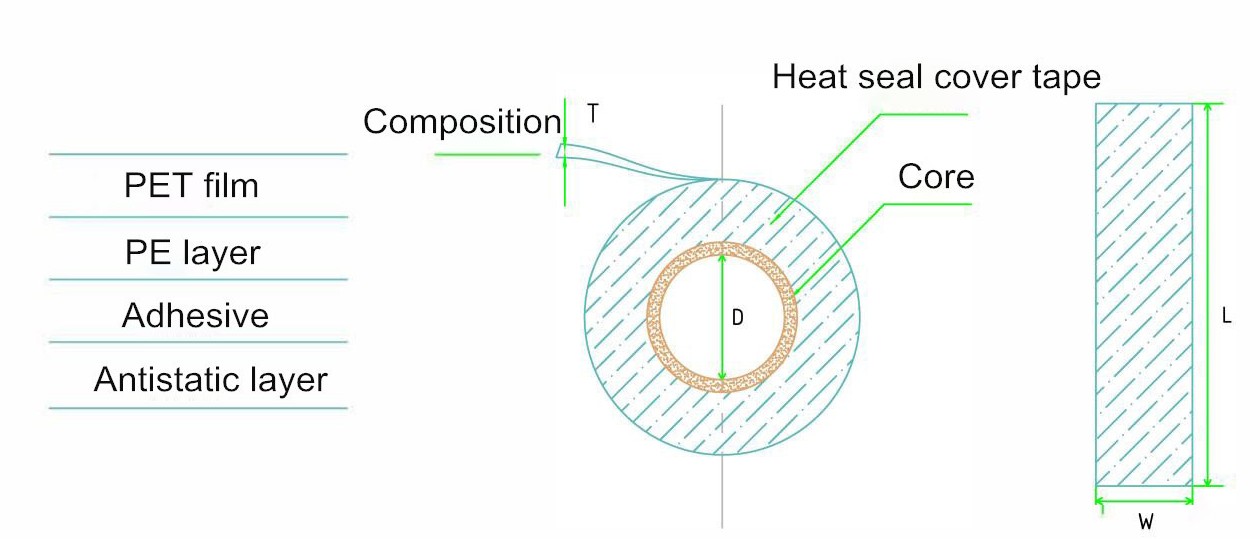

| Drawing | Safety Tested Reports |
