Custom Embossed Carrier Tape

High quality custom carrier tape solution developed specifically for your part
A board range of materials, PS, PC, ABS, PET, Paper to satisfy your different application
8mm to 104mm width tapes could be manufactured in linear & rotary forming & particle forming machine
Fast turnaround times and consistent high quality with 12 hours drawing, 36 hours prototype sample, 72 hours delivery to your door
Small MOQ is available
All SINHO carrier tape is manufactured in accordance with current EIA 481 standards

Product Detail

Product Tags

Sinho’s custom embossed carrier tape is created for components that do not fit into standard tape pockets, in accordance with EIA-481-D standards in a range of widths from 8mm to 200mm, and lengths up to 1,000 meters. There are a board range of materials, Polystyrene (PS), Polycarbonate (PC), Acrylonitrile Butadiene Styrene (ABS), Polyethylene Terephthalate (PET), even Paper material, to produce carrier tape varies for your particular application. Sinho has the broadest range of capabilities to design and create the ideal solution for electronic, mechanical and electromechanical devices which have odd or sharp shapes, angles or dimensions. We utilize rotary forming machine for 8mm and 12mm carrier tapes, linear forming machine for producing 12mm to 104mm width tapes, particle forming machine for small 8 & 12 mm carrier tape with high precision tolerance for large volume.

Sinho has the capabilities to create a high quality custom carrier tape solution strictly based on your part size. We provide fast turnaround times and never compromise on quality, with a designed drawing within 12 hours, a prototype sample within 36 hours (the industry standard is one week). Delivery to your door with the expedite international express within 72 hours. Sinho’s team support expedite order for you. Consistent quality is the most priority of running business.

Details

High quality custom carrier tape solution developed specifically for your part	A board range of materials, PS, PC, ABS, PET, Paper to satisfy your different application	8mm to 104mm width tapes could be manufactured in linear & rotary forming & particle forming machine
Fast turnaround times and consistent high quality with 12 hours drawing, 36 hours prototype sample, 72 hours delivery to your door	Compatible with Sinho Antistatic Pressure Sensitive Cover Tapes and Sinho Heat Activated Adhesive Cover Tapes with good sealing and peeling performance	Critical dimensions are checked and monitored at regular intervals and recorded
100% in process pocket inspection	Small MOQ is available	Single or level wound for your choice

Typical Properties

	Brands		SINHO
	Color		Black, Clear, White
	Material		PS, ABS, PC, PET, Paper...
	Overall Width		8 mm to 104 mm

	Package		Single wind or level wind format on 22” cardboard/plastic reel
	Application		Electronic, Mechanical and Electromechanical devices with odd or sharp shapes, angles or dimensions

Customized Carrier Tape

1.25 AO with 1.0 mm Limited Vacuum Hole

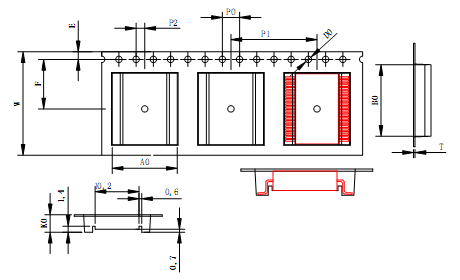

Customized carrier tape for Germany customer, 1.25 AO need to with 1.0mm vacuum hole, the less space for one side is only 0.125mm, which meets the EIA-481-D standard for the dimensions illustrated below.

Chisel Design for Bent Leads Issue

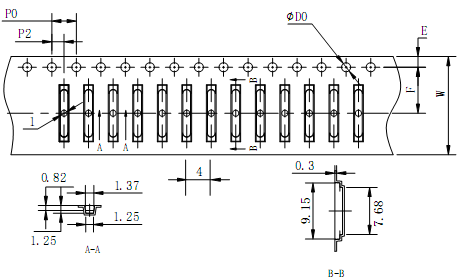

Customized carrier tape for UK customer, the requested device with leads, chisel design could solve bent leads issue well in transportation, which meets the EIA-481-D standard for the dimensions illustrated below.

Nail Head Pin in SMT Carrier Tape

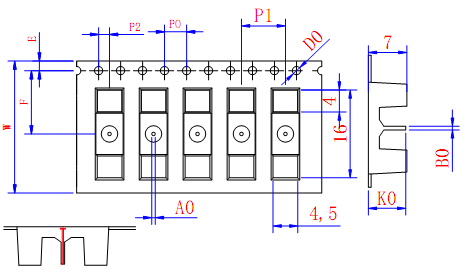

Customized carrier tape for France military customer, the nail head pin is thin and long, adding extra pockets on sides to prevent the center pin from easily bended, which meets the EIA-481-D standard for the dimensions illustrated below.

Pin Receptacle MillMax 041

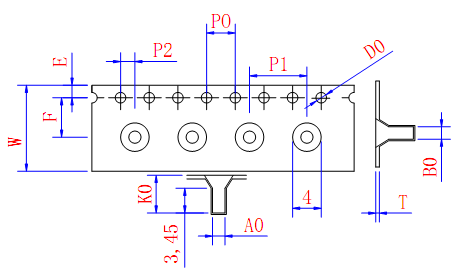

Customized carrier tape for US customer, this pin receptacle is designed into a wide 12mm tape, to allow the pin to sit snugly with minimal lateral movement, which meets the EIA-481-D standard for the dimensions illustrated below.

More Cases >>
