7 inch Component Plastic Reel
Sinho’s ANTISTATIC PLASTIC REELS provide excellent protection for components that are packaged in carrier tape for presentation to pick and place machines. There are mainly three types reels, one piece style for mini 4” and 7” reels, assembly type for 13” and 15” reels, the third type is 22” packaging plastic reel. Sinho plastic reels are injection molded using High Impact Polystyrene exception 22 inch reels which could be made of Polystyrene (PS), Polycarbonate (PC) or Acrylonitrile Butadiene Styrene (ABS). All reels are externally coated for complete ESD protection. Available in EIA standard carrier tape widths from 8 to 72mm.
Sinho’s 7” static dissipative component reels are also one piece style reels, made of high impact polystyrene. One piece construction is sturdy no need assemble. This reel provides excellent protection when shipping small components packaged in carrier tape, such as bare die, small Integrated Circuit packages. SHPR series is available in the standard sizes of 7"×wide 8mm, 7"×wide 12mm, 7"×wide 16mm, 7"×wide 24mm.
Details
| One-piece anti-static mini component reels | Made from high impact polystyrene for added strength and durability | Optimized for packaging small components, such as bare die, small integrated circuit... | ||
| Available in 8, 12, 16, 24mm widths |
|
There are main colors: white, semi-transparent, blue, black |
|
Customize color is available |
Typical Properties
| Brands |
SINHO (SHPR series) |
|
| Reel Type |
Anti-static one piece reel |
|
| Color |
White, Semi-transparent, Blue, Black or customize color is also available |
|
| Material |
HIPS (high impact polystyrene) |
|
| Reel Size |
7 inch |
|
| Hub Diameter |
60/59 ±0.20mm |
|
| Available Carrier Tape Width |
8mm, 12mm, 16mm, 24mm |
Available Sizes
|
Reel Sizs |
Hub Diameter / Type |
Sinho code |
Color |
Package |
|
7" × 8mm |
60±0.20mm |
SHPR0708 |
White |
318 pcs/reel |
|
7" × 12mm |
60±0.20mm |
SHPR0712 |
228 pcs/reel |
|
|
7" × 16mm |
59±1.00mm |
SHPR0716 |
180 pcs/reel |
|
|
7" × 24mm |
60±0.50mm |
SHPR0724 |
126 pcs/reel |

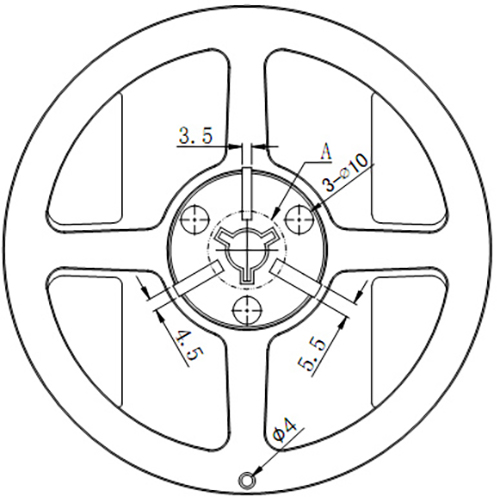

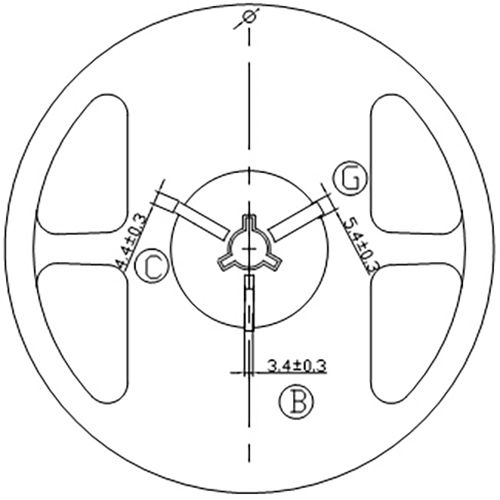

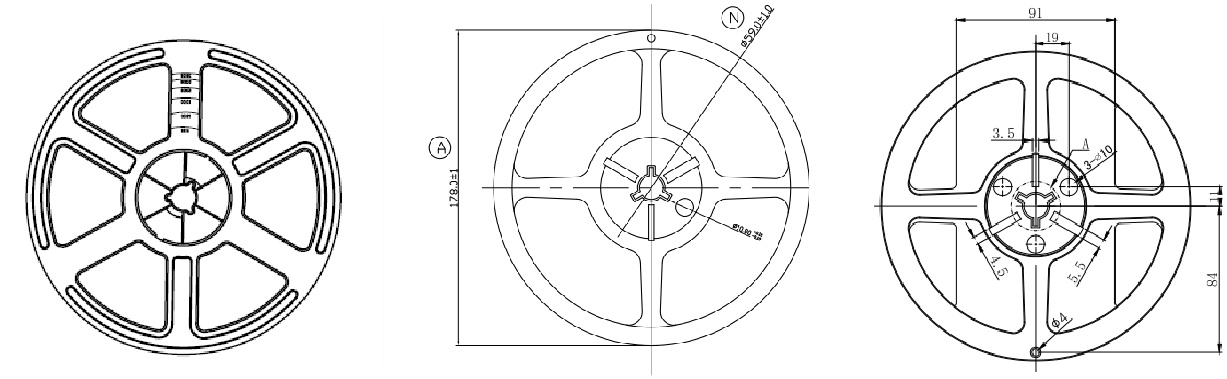

Dimensions for 7 Inch Moulded Reels
|

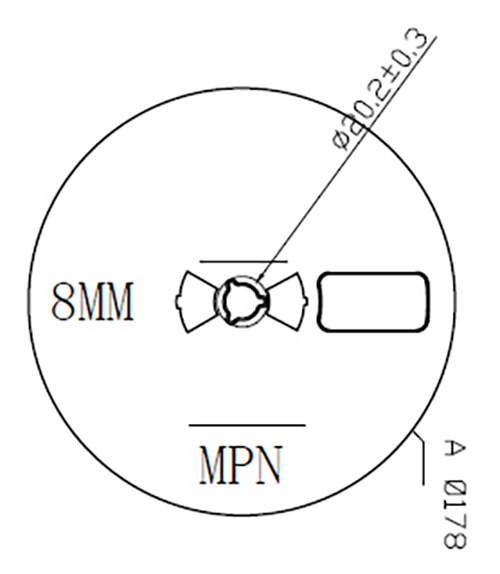

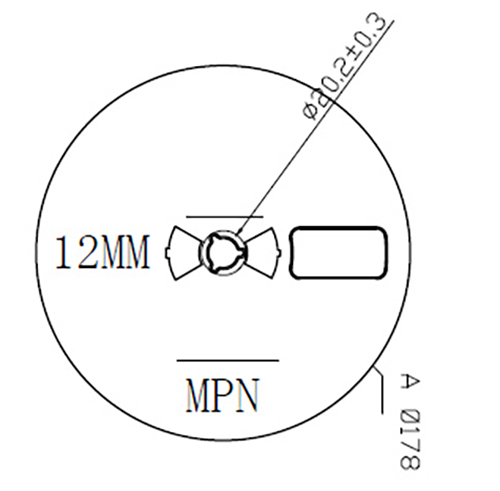

7”×8mm & 7”×12mm Dimensions |
|
|
|
||||
|
Tape Width |
A Diameter |
B Hub |
C |
D |
E |
F |
T |
|
8 |
178 |
60 |
13.3 |
2.20 |
9.80 |
9.00 |
1.20 |
|
|
+/- 0.05 |
+/- 0.20 |
+/- 0.20 |
+/- 0.20 |
+/- 0.30 |
+/- 0.30 |
+/- 0.20 |
|
178 |
60 |
13.3 |
2.20 |
9.80 |
12.50 |
1.20 |
|
|
|
+/- 0.05 |
+/- 0.20 |
+/- 0.20 |
+/- 0.20 |
+/- 0.30 |
+/- 0.30 |
+/- 0.20 |
|
A Diameter |
N Hub |
D |
B |
C |
E |
T |
|
|
16 |
178 |
59 |
13.3 |
3.40 |
4.40 |
2.50 |
1.40 |
|
|
+/- 1.00 |
+/- 1.00 |
+/- 0.30 |
+/- 0.30 |
+/- 0.30 |
+/- 0.50 |
+/- 0.15 |
|
7”×24 mm Dimensions |
|||||||
|
Tape Width |
A Diameter |
D |
B |
C Hub |
H |
T |
|
|
24 |
180 |
13 |
25 |
60 |
28 |
1.40 |
|
|
|
+/- 1.00 |
+/- 0.2 |
+0.80 - 0.00 |
+/- 0.50 |
+/- 0.15 |
||
|
All other dimensions and tolerances are fully compliant with EIA-484-F |
|||||||
Material Properties
|
Properties |
Typical Value |
Test Method |
|
Type: |
One piece |
|
|
Material: |
High Impact Polystyrene |
|
|
Appearance: |
White |
|
|
Surface Resistivity |
≤1011Ω |
ASTM-D257,Ω |
|
Storage Conditions: |
||
|
Environment Temperature |
20℃-30℃ |
|
|
Relative Humidity: |
50%±10% |
|
|
Shelf Life: |
1 year |
|
