22 inch Packaging Plastic Reel
Sinho's ANTISTATIC PLASTIC REELS offer exceptional protection for components enclosed in carrier tape when presented to pick and place machines. Primarily, there are three types of reels: a one-piece style for mini 4" and 7" reels, an assembly type for 13" and 15" reels, and a third type designed for 22" packaging plastic reels. Sinho plastic reels are injection molded using High Impact Polystyrene, except for 22-inch reels, which can be made from Polystyrene (PS), Polycarbonate (PC), or Acrylonitrile Butadiene Styrene (ABS). All reels have ESD protection coatings and come in EIA standard carrier tape widths from 8mm to 72mm.
Sinho’s 22” packaging plastic reels are available for a high volume demand of components per reel when paper or cardboard reels are not suitable. Reels are assembled quickly with a simple twisting motion, featuring flanges and hubs. They are made from Polystyrene (PS), Polycarbonate (PC), or Acrylonitrile Butadiene Styrene (ABS) and come with anti-static coatings for ESD protection. This series is offered in standard sizes ranging from 12 to 72mm carrier tape widths.
Details
| Optimized for high-volume component reels | Made from Polystyrene (PS), Polycarbonate (PC) or Acrylonitrile Butadiene Styrene (ABS) with anti-static coated for ESD protection | Available in various hub widths, ranging from 12 to 72mm | ||
| Easy and simple assembly with flange and hub in just seconds with a twisting motion | Reels are available in black, blue, or white | Custom color options are also offered |
Typical Properties
| Brands |
SINHO (SHPR series) |
|
| Reel Type |
Anti-static assembly reel |
|
| Color |
Black, Blue, White, Clear or customize color is also available |
|
| Material |
Polystyrene (PS), Polycarbonate (PC) or Acrylonitrile Butadiene Styrene (ABS) |
|
| Reel Size |
22 inch (558mm) |
|
| Hub Diameter |
160mm |
|
| Available Carrier Tape Width |
12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm |
Available Sizes
|
Reel Sizes |
Hub Width |
Hub Diameter / Type |
Sinho code |
Color |
|
22" |
12.4-72.4mm |
160mm |
SHPR56032 |
Black/Blue/White/Clear |
Material Properties
|
Properties |
Typical Value |
Test Method |
|
Type: |
Assembly type (two flanges plus hub) |
|
|
Material: |
PS & PC & ABS |
|
|
Appearance: |
Black |
|
|
Surface Resistivity |
≤1012Ω |
ASTM-D257,Ω |
|
Storage Conditions: |
||
|
Environment Temperature |
20℃-30℃ |
|
|
Relative Humidity: |
(50%±10%) RH |
|
|
Shelf Life: |
2 years |
|
Resources
| Date Sheet for Materials | Material Safety Data Sheet |

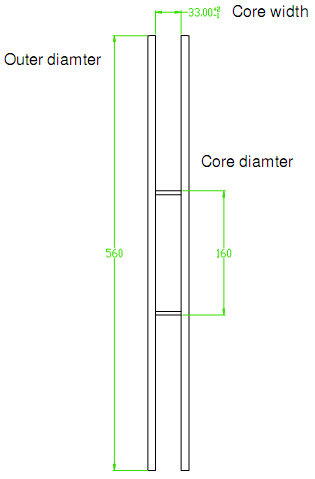

| Safety Tested Reports | Drawing |
